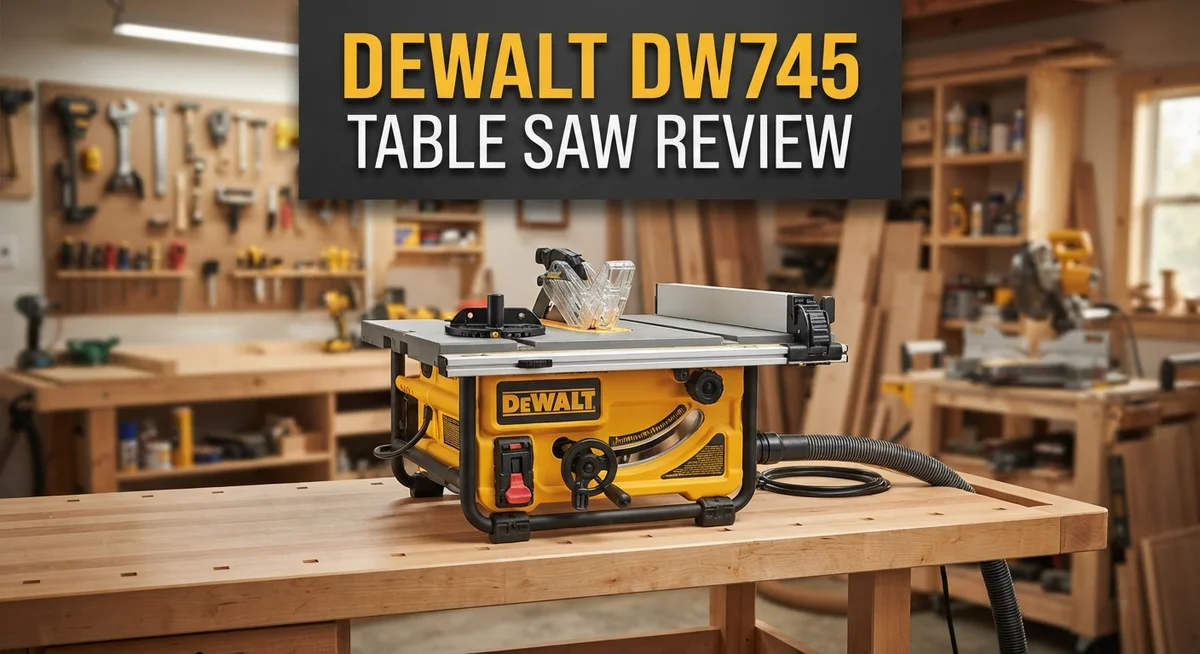

DeWalt DW745 Table Saw Review: Does It Really Work?
Looking for a portable table saw that fits your job site? The DeWalt DW745 might be your answer.
This saw packs a 15-amp motor into a compact frame. It cuts through wood with a 10-inch blade and delivers real power.
Many woodworkers love its rack-and-pinion fence system. This design keeps your rip cuts accurate every time. You won’t fight with misaligned cuts on this machine.
In a Nutshell
- Cutting Power: The 10 inch blade handles most cuts with ease. Rip capacity stays limited, so plan your cuts carefully.
- Blade Performance: Blade alignment stays precise at 90 degrees. Changing blades takes little effort or time.
- Build Quality: The steel roll cage keeps this saw sturdy on job sites. Table surface stays small, which limits jig and sled use.
- Noise Levels: This saw runs quieter than many direct drive models. Some users still notice motor noise during heavy cuts.
- Included Accessories: The stock blade works fine for basic tasks. Many users swap it out fast since quality feels low.
- Dado Cuts: This saw cannot accept dado blades. The short arbor shaft blocks that option completely.
- Miter Gauge: The included miter gauge feels cheap and plastic. Upgrading this part improves accuracy quickly.
Motor Power and Blade Specifications
The 15-amp motor delivers solid cutting power for a portable table saw. This motor spins the blade fast enough to handle ripping, crosscutting, and angled cuts without bogging down. You’ll notice consistent performance across different wood types and thicknesses.
The 10-inch blade is the standard size for this class of saw. It cuts material up to 3-1/8 inches wide at 90 degrees. When you tilt the blade to 45 degrees, the rip capacity drops to 2-1/4 inches. This limitation matters if you plan to rip wide boards at angles.
The included blade has 24 teeth and features carbide tips. It handles crosscutting and ripping adequately for general work. Many users upgrade to a better blade quickly because the stock blade feels disposable. Changing blades takes just a few minutes thanks to the simple arbor design.
One key limitation is the short arbor shaft. This prevents you from installing dado blades or stacked blade sets. If dado cuts are essential to your work, this saw won’t accommodate that need. The arbor length was a design choice to keep the saw compact and portable.
The blade alignment stays precise at 90 degrees. The factory calibration holds up well, even after moving the saw between job sites. This accuracy matters when you need square cuts without extra sanding or planing.
Blade changes are straightforward. The wrench fits comfortably, and the arbor lock engages smoothly. You won’t struggle with stuck bolts or confusing mechanisms here.
The direct-drive motor runs louder than some belt-drive competitors. Hearing protection is recommended during extended use. The noise level is acceptable for a job site tool but noticeable in a quiet workshop.
Overall, the motor and blade system work well together for portable cutting tasks. The 15-amp motor provides enough grunt for daily use. The 10-inch blade covers most common cuts. Just remember the arbor limitation and plan your blade strategy accordingly.
- 24.5 in. of rip capacity for ripping 4x8 plywood or OSB sheets
- Compact size for easy transportation and storage
Last update on 2026-08-29 / Affiliate links / Images from Amazon Product Advertising API Some of the links on this website are affiliate links, which means that at no additional cost to you, I earn a commission if you click through and make a purchase. I only recommend products and services that I believe will add value to my readers. Thank you for your support!
Portability and Build Quality
The DeWalt DW745 stands out for its portable design without sacrificing build quality. This saw weighs around 35 pounds, making it manageable for one person to carry to job sites. The steel roll cage provides genuine protection during transport and storage.
The frame construction uses quality steel components. You’ll notice the base feels solid underfoot when you operate the saw. The compact footprint means it fits easily into truck beds or workshop corners. The portable design doesn’t mean flimsy construction.
Weight distribution matters for stability. This saw keeps its center of gravity low, so it sits firmly on any flat surface. The roll cage doubles as both a protective frame and a handle system. You can grab it comfortably without worrying about sharp edges or unstable sections.
The table surface presents one trade off. The smaller work area limits your ability to use large jigs or sleds. Ripping narrow boards works great. Building custom cutting guides requires more planning than it would on a full size cabinet saw.
The plastic components feel less durable than metal alternatives. The miter gauge uses cheap plastic, and some users report it wearing quickly. The fence system, however, uses the rack and pinion mechanism that stays accurate over time. This means your rip cuts remain consistent even after months of use.
Dust collection ports attach easily to the saw body. The steel construction around these ports holds up well to repeated connections and disconnections. Many job site users appreciate this durability.
The direct drive motor mounts securely to the frame. Vibration stays minimal during operation, which helps maintain accuracy. The motor itself produces noise, but the mounting system prevents excessive shaking that would damage the saw’s structure.
Overall, the DW745 balances portability with solid construction. It won’t feel as robust as a stationary cabinet saw, but it outperforms many competing portable models. The steel roll cage and accurate fence system prove DeWalt invested in the right areas. Job site workers and beginners will find this build quality meets their daily needs.
Rip Capacity and Cutting Precision
The rip capacity of the DW745 determines how wide you can cut material in a single pass. This saw offers 3-1/8 inches at 90 degrees, which handles most standard lumber and sheet goods for typical workshop tasks.
At 45-degree angles, the capacity drops to 2-1/4 inches. This reduced width is normal for angled cuts. You’ll need to plan your projects around these limits if you work with wider stock regularly.
The rack-and-pinion rip fence is where this saw truly shines. This mechanism keeps your fence parallel to the blade with minimal drift during cuts. You lock it firmly in place, and it stays put throughout your work.
Precision matters when you’re making repetitive cuts. The DW745 maintains accurate blade alignment at 90 degrees consistently. Users report that fence adjustments are straightforward and don’t require constant tweaking between cuts.
The small table surface does present a trade-off here. Limited space means you cannot easily attach auxiliary fences or build custom jigs to expand your cutting capacity. Serious woodworkers often upgrade their fence systems on larger models for this reason.
Blade changes happen quickly with this design. You access the arbor easily without removing the entire motor assembly. This convenience matters when you switch between different cutting tasks on job sites.
One important note: the short arbor shaft prevents you from using dado blade sets. If your projects require groove cuts or rabbets, you’ll need to use a router or different equipment. This limitation affects the saw’s versatility for certain carpentry applications.
The 24-tooth carbide blade included with your purchase works fine for general ripping and crosscutting. However, many users replace it immediately with a higher-quality blade. The stock blade feels more like a bonus than a long-term solution.
For job site work and beginner projects, the rip capacity and cutting precision hit the right balance. You get reliable accuracy without unnecessary complexity. The fence system responds well to minor adjustments, keeping your cuts square and consistent throughout your day.
Top 3 Alternatives
Makita 2705 Table Saw
- Left extension table with smooth sliding action
- Right and rear extension table enables greater cutting capacity
Last update on 2026-08-29 / Affiliate links / Images from Amazon Product Advertising API Some of the links on this website are affiliate links, which means that at no additional cost to you, I earn a commission if you click through and make a purchase. I only recommend products and services that I believe will add value to my readers. Thank you for your support!
Bosch 4100 Table Saw
- BOSCH TOOLS SAW: 15-Amp portable table saw with 3,800 rpm for rip-cutting and cross-cutting of fine...
- CONVENIENCE BRAKE: The brake on this tablesaw helps blade stop in approximately three seconds...
Last update on 2026-08-29 / Affiliate links / Images from Amazon Product Advertising API Some of the links on this website are affiliate links, which means that at no additional cost to you, I earn a commission if you click through and make a purchase. I only recommend products and services that I believe will add value to my readers. Thank you for your support!
Ryobi BTS15 Table Saw
- Steel Frame For fast and accurate cuts
- Lower and Adjustable Self-Aligning Fence For cutting thinner materials
Last update on 2026-08-29 / Affiliate links / Images from Amazon Product Advertising API Some of the links on this website are affiliate links, which means that at no additional cost to you, I earn a commission if you click through and make a purchase. I only recommend products and services that I believe will add value to my readers. Thank you for your support!
Ease of Setup and Blade Changes
Setting up the DeWalt DW745 takes just a few minutes out of the box. The saw arrives mostly assembled, so you skip the frustration of complex construction steps.
The roll cage frame comes pre welded and sturdy. You attach the motor and blade assembly to the frame using simple bolts. Most users finish setup in under 15 minutes without special tools.
The fence system deserves attention here. The rack and pinion mechanism locks into place with minimal effort. You simply slide the fence to your desired width and tighten the lever. This design keeps everything square and ready to cut.
Blade changes happen fast on this model. You access the blade from the front of the saw without removing side panels or guards. The arbor nut loosens easily by hand or with the included wrench. Many users appreciate this convenience on job sites where quick blade swaps save time.
The blade height adjustment uses a smooth wheel mechanism. Turn it clockwise to raise the blade or counterclockwise to lower it. The motion feels responsive and precise. You can dial in your exact cutting depth without guessing.
Tilt adjustments for bevel cuts work similarly. A knob at the base of the motor allows you to angle the blade from 0 to 45 degrees. The mechanism feels solid, and the blade stays aligned after you tighten it down.
One practical tip: keep the included wrench nearby during work. You’ll use it occasionally to tighten the arbor nut if vibration loosens it slightly. This happens less often with proper maintenance, but it’s worth knowing.
The portable design means you can move this saw between locations easily. The handle sits at a comfortable height, and the weight distributes well across the frame. Transport feels manageable for one person.
Overall, the DW745 excels at user friendly setup and maintenance. Blade changes take seconds, and fence adjustments require minimal fussing. These features make it especially appealing for contractors and hobbyists who value efficiency on the job.
Limitations and Compatibility Issues
The DeWalt DW745 comes with real limitations you should know about before buying. Understanding these constraints helps you decide if this saw fits your workshop needs.
Table surface size is the first constraint. The compact work surface restricts your ability to use large jigs and sleds. Ripping long boards becomes tricky because you lack space on both sides of the blade. Crosscutting wide panels also gets challenging. You’ll need outfeed support or external tables for serious production work.
The included blade quality disappoints many users. The 24 tooth carbide blade works but feels disposable. Serious woodworkers replace it immediately with a better option. You’ll spend extra money upgrading to a quality blade for cleaner cuts.
Dado blade compatibility is a major limitation. The short arbor shaft cannot accept dado blade sets. If you need to cut grooves or rabbets regularly, this saw won’t support that task. You’d need a separate tool or different saw model for dado work.
The plastic miter gauge feels cheap compared to the steel frame. It lacks rigidity for precision crosscutting. Many owners upgrade to an aftermarket gauge right away. The fence is excellent, but the gauge holds you back from accurate crosscuts.
Motor noise presents another issue. The direct drive motor runs louder than belt drive alternatives. If you work in shared spaces or early mornings, this matters. Hearing protection becomes necessary during extended use.
Rip capacity limitations affect your project options. At 90 degrees, you’re limited to 3 1/8 inches wide cuts. Bevel cuts drop to 2 1/4 inches. These numbers restrict the material sizes you can handle in one pass. Larger stock requires multiple passes or a bigger saw.
The power cord requirement means you need outlet access. Cordless operation isn’t possible. Job sites without nearby power become problematic.
These limitations don’t make the DW745 bad. They simply define what this saw does well and where it falls short. Matching these constraints to your actual needs determines whether this model serves you properly.
Pros and Cons
Pros
- Accurate rack-and-pinion rip fence makes repetitive cuts consistent and reliable
- Portable design with sturdy steel roll cage moves easily between job sites
- Blade changes happen quickly thanks to simple wrench-free mechanism
- Precise 90-degree blade alignment stays true without constant readjustment
- Relatively quiet operation compared to other direct-drive portable saws
Cons
- Small table surface limits your ability to use jigs, sleds, or support larger workpieces
- Short arbor shaft prevents you from installing dado blade sets for groove cutting
- Included 24-tooth blade feels cheap and disposable for serious woodworking projects
- Plastic miter gauge feels flimsy next to the sturdy steel frame and fence system
Who Should Buy It
The DeWalt DW745 works best for specific types of users. Let’s break down who should actually buy this saw.
Job site workers love this model. You move between locations daily. The portable design with the steel roll cage makes transport simple. You need power and accuracy without hauling a massive stationary saw. This saw delivers both.
Beginners and hobbyists find the DW745 approachable. Setup takes minutes. Blade changes require no special skills. The rack-and-pinion fence stays accurate, so your cuts come out straight without constant fiddling. You get reliable results as you learn woodworking basics.
Contractors doing rough framing and general ripping appreciate the straightforward operation. You make repetitive cuts all day. The fence holds position perfectly. You don’t need fancy features. You need something that works and doesn’t quit.
DIY homeowners with small projects fit the profile too. You build decks, cut lumber for sheds, or handle home repairs. The 3 1/8 inch rip capacity handles standard dimensional lumber. You work in garages or yards where space matters. Portability becomes valuable.
Who should skip this saw? Serious woodworkers need to look elsewhere. You want dado blade capability for grooves and joints. The short arbor shaft blocks that option. You work with larger panels and need more table surface. The compact design frustrates you. You demand premium quality components throughout.
Cabinet makers and furniture builders should consider other options. The included blade quality disappoints professionals. The plastic miter gauge feels flimsy. You upgrade components immediately, which adds expense and hassle.
People doing precision crosscutting with fine details need different equipment. The small table limits your jig options. Accuracy matters more than portability for your work.
The DW745 shines when portability meets straightforward cutting tasks. If you move your saw regularly and need basic ripping and crosscutting, this machine earns its place in your workshop. Match the saw to your actual work, not to features you might use someday. That’s how you make the right choice.
Final Verdict
The DeWalt DW745 earns its reputation as a reliable jobsite companion. It handles everyday cutting tasks without fuss. Most users walk away satisfied with its core performance.
This saw shines brightest when you need reliable ripping power on the go. It moves from truck to site without drama. That flexibility matters more than fancy features for many buyers.
Think of the DW745 as a tool built for action, not perfection. It won’t replace a cabinet shop saw. But it will get framing and general cuts done right.
Simplicity defines this machine. You won’t find endless dials or complicated setups. Turn it on, set your fence, and start cutting.
The saw rewards users who value consistency over versatility. Every rip cut feels the same as the last. That predictability builds trust over time.
Some woodworkers might feel limited by its scope. Others will find exactly what they need. It depends entirely on your project list.
If your work involves rough carpentry, remodeling, or general construction, this saw fits well. It handles those jobs with confidence and steady output.
If you build fine furniture or intricate joinery, look elsewhere. The DW745 wasn’t built for that level of precision work.
Reliability stands out as its strongest trait. Users report consistent results cut after cut, job after job. That consistency builds long term confidence.
The saw earns its place in many toolkits for good reason. It does specific jobs well without overselling itself. That honesty in performance counts for something.
Overall, the DW745 works best as a dependable workhorse. It’s not trying to be everything to everyone. Instead, it does its job and does it consistently.
For contractors and hobbyists who need portable, dependable ripping power, this saw delivers exactly what it promises. Nothing more, nothing less. That straightforward approach makes it easy to recommend.
Frequently Asked Questions
Does the DW745 work with dado blade sets?
No. The short arbor shaft on this model prevents dado blade installation. You can only use standard circular blades. If groove cutting or slot work matters to your projects, you’ll need a different saw with a longer arbor.
What’s included in the box?
You get the saw, a 24-tooth carbide blade, a miter gauge, and a rip fence. The blade cuts acceptably for rough work, but many users upgrade it quickly for better results.
Can I move this saw easily between locations?
Yes. The sturdy steel roll cage keeps the saw portable and durable. It moves smoothly on job sites or between workshops. The compact footprint fits in trucks and trailers without taking up much space.
How accurate is the rip fence?
Very accurate. The rack-and-pinion mechanism holds the fence straight and square. You get consistent cuts without drift or creep. The fence stays put during operation, which keeps your rip capacity reliable.
Is this saw loud?
The direct-drive motor produces more noise than belt-drive models. It runs louder than some users expect. If noise bothers you or your neighbors, wear ear protection during use. The sound level remains typical for portable jobsite saws.
